製品詳細
起源の場所: 中国
ブランド名: JGPV
モデル番号: Z41H-JGPV
支払いと送料の条件
最小注文数量: 1SET
価格: USD59.5/pc - USD5999/pc
パッケージの詳細: パライウッドの箱の安全包装
受渡し時間: 14 日
支払条件: L/C,T/T,ウェスタンユニオン
供給の能力: 月に500個
標準または非標準: |
スタンダード |
適用する: |
一般的な |
製品の特徴: |
工業用バルブ製品 |
目的: |
パイプラインを開くと閉じる |
中型: |
水,蒸気,油 |
作業温度: |
普通の温度 |
圧力の適用: |
低圧,中圧,高圧 |
試験基準: |
耐久性試験,密封試験,その他のクライアントのニーズ |
品質保証: |
18ヶ月 |
カスタマイズされたサポート: |
OEM と ODM サービス |
名前: |
上昇の茎のゲート弁 |
標準または非標準: |
スタンダード |
適用する: |
一般的な |
製品の特徴: |
工業用バルブ製品 |
目的: |
パイプラインを開くと閉じる |
中型: |
水,蒸気,油 |
作業温度: |
普通の温度 |
圧力の適用: |
低圧,中圧,高圧 |
試験基準: |
耐久性試験,密封試験,その他のクライアントのニーズ |
品質保証: |
18ヶ月 |
カスタマイズされたサポート: |
OEM と ODM サービス |
名前: |
上昇の茎のゲート弁 |

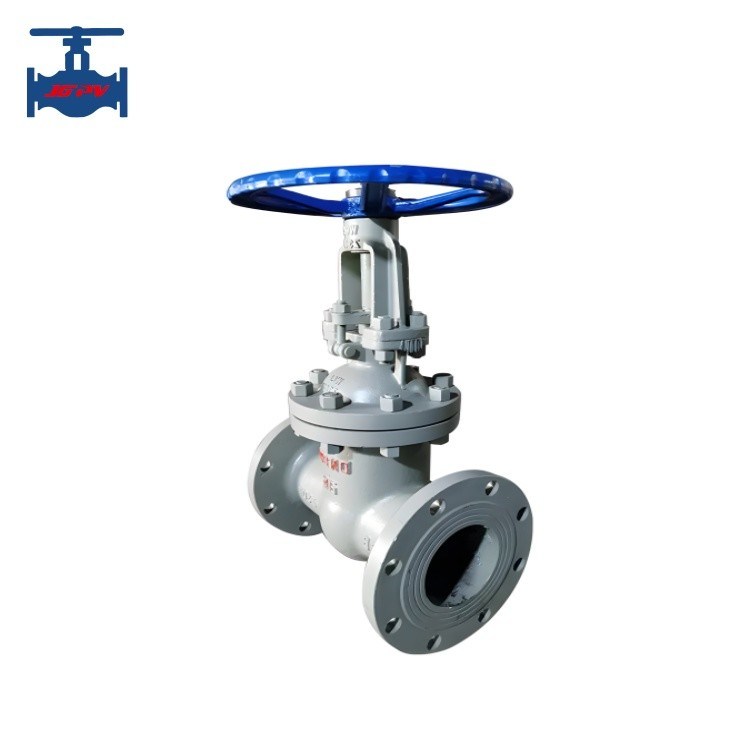

Cast Steel ASTM A216 WCB Bolted Bonnet Outside Screw And Yoke Wedged Gate Valve
Product Introduction:
Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.
Cast steel is mainly used for controlling the flow rate, pressure, and temperature of pipelines in various industrial automation production. For example: electricity, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc
Product Technical Parameters:
| Type Number: | Z41H-JGPV | |
| Nominal Pressure PN(MPa) | 1.0 - 10.0 | |
| Nominal Diameter DN(mm) | 50～600 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | WCB, WCC, WC6, WC9 | |
| Medium suitable: | Water, steam, oil etc. | |
| Working temperature | 425≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Product features:
1. Cast steel gate valve with low flow resistance;
2. Cast steel gate valve with less erosion of the sealing surface by the medium;
3. Cast steel gate valve with compact structure, opening and closing are more effortless.
4. The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure.
5. As medium can flow toward either direction of the two sides, it is easy to be installed;
6. Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance,
