製品詳細
起源の場所: 中国
支払いと送料の条件
Minimum Order Quantity: 1set
パッケージの詳細: パライウッドの箱の安全包装
受渡し時間: 14日
支払条件: L/C,T/T,ウェスタン・ユニオン
Supply Ability: 100pcs per month
Application:: |
一般的な |
中等型:: |
水,蒸気,油など |
タイプの取付け:: |
直接台紙 |
標準または非標準:: |
スタンダード |
流通方式:: |
双方向 |
アクチュエーション: |
手動,電気,空気,自動 |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
圧力の適用:: |
正常な圧力 |
Quality Warranty:: |
18 Months |
Application:: |
一般的な |
中等型:: |
水,蒸気,油など |
タイプの取付け:: |
直接台紙 |
標準または非標準:: |
スタンダード |
流通方式:: |
双方向 |
アクチュエーション: |
手動,電気,空気,自動 |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
圧力の適用:: |
正常な圧力 |
Quality Warranty:: |
18 Months |

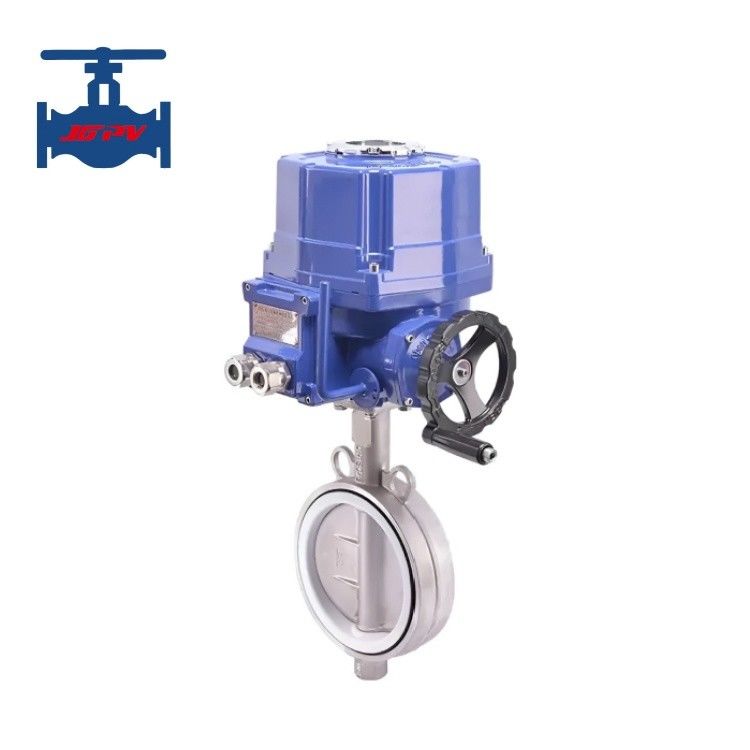

Highlight: electric wafer type butterfly valve
Product introduction:
The electric butterfly valve with electric actuator with on/off function to control operation, (AC220V/AC380V), has strong function,especially suitable for in the medium is thick,containing particles,fiber nature of the occasion. At present,the electric control valve is widely used in food,environmental protection, light industry, petroleum, paper, chemical,teaching and research equipment,power and other industries in the industrial automatic control system.
Product technical parameters:
|
Type number |
D971F-16P |
|
|
Nominal Diameter DN(mm) |
50～1200 |
|
|
Nominal Pressure PN(MPa) |
1.6 |
|
|
Control method |
Electricity: On/off switch |
|
|
Power supply |
AC380V |
|
|
Main parts |
Valve body |
Stainless steel 304 (CF8) |
|
Disc |
||
|
Valve seat |
PTFE |
|
|
Axle |
Stainless steel 304 (CF8) |
|
|
Water, air, oil and nitric acid etc corrosive medium |
||
|
Working temperature |
150≤℃ |
|
|
Connection type |
Wafer type |
|
|
Connection type |
Flange |
|
Product features:
1. Small and light, easy to disassemble and repair, can be installed in any location.
2. Simple structure, compact, 90°rotation start quickly.
3. flow characteristics tend to be straight, good regulation performance.
4. opening and closing test times up to tens of thousands of times, long life.
5. The sealing element can be replaced, the sealing is reliable to achieve two-way sealing, and the leakage of gas test is zero.
