製品詳細
Place of Origin: China
支払いと送料の条件
Minimum Order Quantity: 1set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

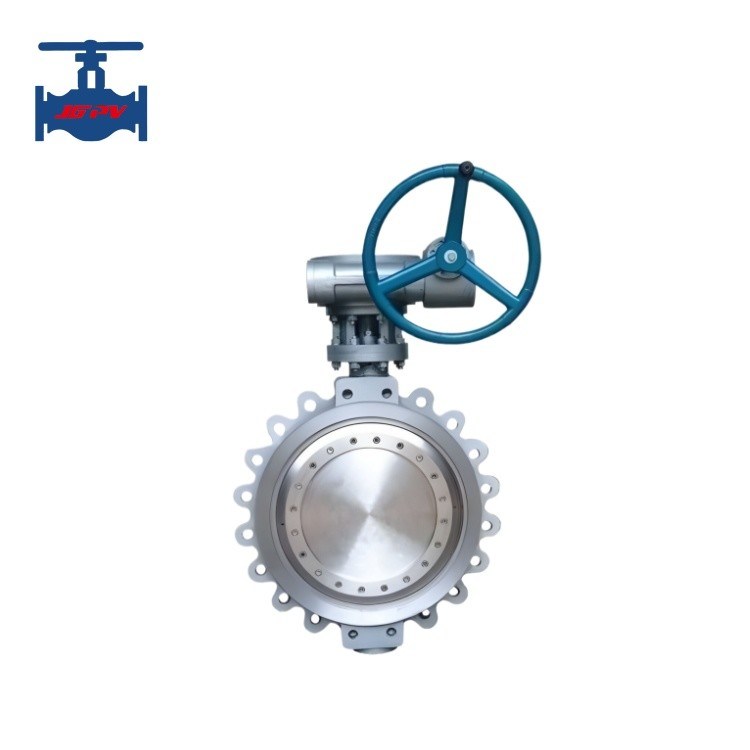

ハイライト: ハードシールステンレス鋼トリプル偏心バタフライバルブ
製品紹介:
製品技術パラメータ:
呼び径 DN (mm) |
50~1200 |
|
呼び圧力 PN (MPa) |
0.6~4.0 |
|
試験圧力 (MPa) |
強度 (水) |
0.9~6.0 |
密閉 (水) |
0.66~4.4 |
|
主なコンポーネント |
ボディ |
ステンレス鋼/炭素鋼/合金鋼 |
バルブプレート |
ステンレス鋼/炭素鋼/合金鋼 |
|
バルブステム |
2Cr13 ステンレス鋼 |
|
パッキン |
PTFE、フレキシブルグラファイト |
|
シャフト |
ステンレス鋼、PTFE、超硬合金 |
|
使用温度 |
-40~570℃ |
|
適合媒体 |
水、油、蒸気、酸、アルカリ、その他の腐食性媒体 |
製品の特徴:
1. 開閉が容易で迅速、省力化、流体抵抗が小さく、頻繁な操作に適しています。
2. 構造がシンプルで、体積が小さく、軽量です。
3. パイプ出口での液体の蓄積を最小限に抑えて、スラリーを輸送できます。
4. 低圧下で良好なシール性能を発揮します。
5. 優れた調整性能。
